/ Products / CISCO / CTS-IX5000

CTS-IX5000

CISCO Refurbished

Manufacturer: CISCO
Condition: Refurbished
Lead Time: 7-10 days
Availability: Not In Stock
List Price/RRP: US$299,000.00
Price: US$17,059.00 Enquire

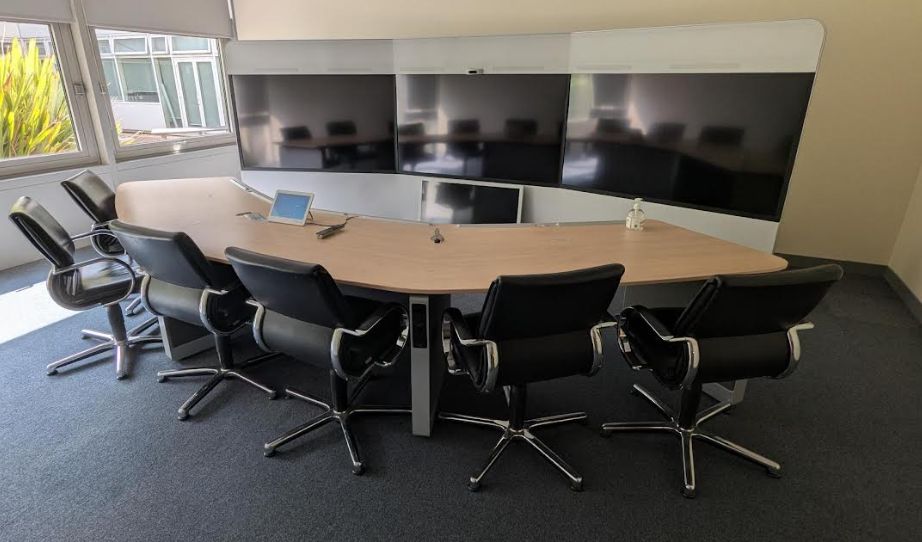

The CTS-IX5000 by CISCO is a powerful teleconferencing solution specifically developed for business use. It provides high quality video and audio capabilities, allowing users in remote locations to engage in meetings as if they were physically present. The product features a 70-inch display and accommodates up to 18 participants in one session. It also has a powerful camera that is capable of tracking speakers as they move around the room. This feature ensures that the speaker is visible to all remote participants, which enhances the meeting experience. The CTS-IX5000 also supports screen sharing and wireless connectivity, allowing users to share documents and other materials in real-time. The product is easy to set up and can be integrated with existing communication systems, ensuring that businesses can easily adopt it into their workflow. Overall, the CTS-IX5000 is an efficient and effective solution for businesses that require powerful and reliable teleconferencing capabilities.

Please note:

System only Tables and Chairs NOT included

Part Code: CTS-IX5000
Description: Cisco TelePresence IX5000
Comments: System only Tables and Chairs NOT included
Manufacturer: CISCO
End of Hardware Support: Yes (31 October 2024)
End of Sale: Yes (25 October 2019)
End of Life: Yes (25 October 2019)
Warranty

Features and Benefits

Expand

Features and Benefits

Feature

Flexible room sizes

Seating options for 6 and 18 participants are available.

Scheduling and one-button-to-push start feature

As with all Cisco video conferencing products, the IX5000 Series supports simple scheduling through Microsoft Exchange calendar services, enabling Cisco’s unique one-button-to-push meeting start feature.

Natural eye contact

A centrally located cluster of three 4K UHD cameras at 60 frames per second (fps) are positioned unobtrusively, allowing complete screen usage while offering outstanding eye contact.

Integrated fill-lighting

Built-in LED lighting to deliver soft, natural facial illumination, removing any dark shadows caused by top lighting and bringing studio-quality lighting to immersive telepresence.

Ergonomic desk environment

Relaxed seating environment incorporating a large open workspace. The curved desk and screen layout facilitates comfortable in-room and remote personal interaction from any seating position.

Intuitive touch control

The intuitive 10” touch-enabled tablet - the Cisco Touch 10 control unit - provides an intuitive and easy-to-use interface. Hard keys are also included for basic operations such as volume and mute. One Touch 10 tablet is included, but nine tablets can be supported in total.

Cisco WebEx conferencing enabled

The Cisco WebEx integration feature extends Cisco meetings to Cisco WebEx users. This solution offers unified scheduling and one-button-to-push meeting start, and it combines audio and data-sharing capabilities. Remote attendees join through the Cisco WebEx Meeting Center and receive video and content from the Cisco video system. This integration improves user experience, making meetings easier and more productive.

Content sharing

Two integrated digital presentation connectors are designed into the table, supporting the latest PC and Mac devices for local and remote content sharing. An additional third HDMI port is available for auxiliary input purposes such as a document camera.
Three 1080p, 30 fps content sources are supported when the system is not in a call
Two 1080p, 30fps content sources are supported in call (IX5000 to IX5000 only)
One 1080p, 30fps content source is supported when calling other Cisco and H.264 BFCP-compliant products
Content can be shared on any of the 70” main displays or aux display(s)
Wireless content viewing on IOS and Android devices and content sharing from MACs and PCs supported with Cisco Intelligent Proximity.

Advanced microphones

Integrated raised desk microphone bars enable high-quality audio pick-up, allowing user to be clearly heard when standing up. The raised bars also help to overcome audio distortion from personal devices such as laptops.
IX5000: 18 discrete microphones
IX5200: 54 discrete microphones

Advanced audio

3-channel AAC-LD spatial audio combined with 19 high-fidelity speaker drivers provides lifelike, location-based audio from every seat. Uniquely designed speakers positioned above the screens provide high-fidelity audio with theater levels of performance:
12 main drivers
6 tweeters
1 subwoofer

Built-in power and network

Each seating position is equipped with a personal power and network LAN connection, designed to enhance the ease of use of personal devices.

Flexible room deployment

No HVAC remediation is required for a default configuration provided the recommended room size is followed and rooms conform to the ASHRAE HVAC standard (62-1999).
For an optimal video experience, please follow the IX5000 Series Room Requirements guide to ensure that required lighting and acoustic conditions are met.

Cisco IX5000 Series System Specifications

Expand

Cisco IX5000 Series System Specifications

Product compatibility

Cisco Unified Communications Manager 10.5, 11.0.1 and 11.5.1 or later
Cisco TelePresence Manager 1.9.4(56) or later
Cisco TelePresence Management Suite 15.1, 15.2.1 and 15.3 or later
Cisco Meeting Server 2.1.3 or later
Cisco TelePresence Server 4.3 and 4.4 or later
Cisco TelePresence Conductor XC4.2 and XC4.3 or later

Software compatibility

Cisco TelePresence System Software IX8.2.0 or later

Protocols

Cisco Discovery Protocol, Session Initiation Protocol (SIP), IP, Dynamic Host Configuration Protocol (DHCP), Secure Shell (SSH) Protocol, 802.1p/q, Real-Time Transport Protocol (RTP) and Secure RTP (SRTP), Telepresence Interoperability Protocol (TIP), H.264, H.265, and Binary Floor Control Protocol (BFCP)

Network connectivity

Ethernet (One LAN, RJ-45 connection: 10/100/1000)

Programming interfaces

Web-based user interface; you can configure IP address assignment statically or through the Cisco TelePresence administrator web interface

System dimensions (H x W x D)

IX5000, 6-seat: 6’ x 15’ x 9’6” (1.8 x 4.6 x 2.9m)
IX5200, 18-seat: 6’ x 25’11” x 17’ (1.8 x 7.9 x 5.2m)

Minimum room dimensions (H x W x D)

IX5000, 6-seat: 8’ x 19’ x 13”8’ (2.4 x 5.8 x 4.2m)
IX5200, 18-seat: 8’ x 31’ x 21” (2.4 x 9.4 x 6.4m)

Recommended room dimensions (H x W x D)

IX5000, 6-seat: 8’ x 19’ x 15” (2.4 x 5.8 x 4.6m)
IX5200, 18-seat: 8’ x 31’ x 22’2” (2.4 x 9.4 x 6.8m)

System weight

IX5000, 6-seat: 1235 lb (560 kg)
IX5200, 18-seat: 1785 lb (810 kg)

System power requirements

Peak 1.13kW (excludes table leg power)
Typical 903W (excludes table leg power)

Power requirements for optional extras (Peak)

Add 13 watts per optional additional Touch 10 tablet
Add 110 watts for optional 42” aux display
Add 176 watts per participant for table power where required

Total typical heat dissipation

Default system configuration: 3,081 BTU/hr
Add 44 BTU/hr per Touch 10
Add 375 BTU/hr for 42” aux display
Add 97 BTU/hr per participant for table power where required

Video and Audio Specifications

Expand

Video and Audio Specifications

Bandwidth consumption

720p, 30 fps at 18.1 Mbps (H265) or 22.1 Mbps (H.264)
1080p, 60 fps at 24.4 Mbps (H.265) or 31.6 Mbps (H.264)

Video standards

SIP, H.264, H.265, TIP, BFCP

Video frame rate

Up to 60 fps using H.264 and H.265

Video resolution

Native support up to 1920 x 1080p, 60 fps

Content frame rate

Content sharing up to 1920 x 1080p resolution, 30fps

Audio standards

G.711/G722 and AAC-LD (22 kHz)

Audio features

Cisco Dynamic Echo Cancellation for spatial audio

Cisco TelePresence UHD camera

Three fixed-focal-length lenses (no moving parts)
Three 4K resolution (2160p, 60 fps)
CMOS 1/2.3-inch sensor
M12 mount lens
Required vertical illumination 400 lux

Auxiliary Interfaces

Expand

Auxiliary Interfaces

Presentation inputs

Two table integrated, multi-headed presentation cables with cable retraction
Physical interfaces:
HDMI
Dual-mode mini display port
Dual-model display port
Thunderbolt
Resolutions:
XGA, 720P, and 1080P resolutions
Timing according to CEA-861

Auxiliary display outputs

Three HDMI (Note: The auxiliary 42” lower data display uses one of these ports when deployed)
XGA, 720P, and 1080P resolutions
CEA-861

Personal LAN ports

IX5000: 6 Ethernet ports (RJ-45); 10/100/1000 Mbps located within table legs
IX5200: 18 Ethernet ports (RJ-45); 10/100/1000 Mbps located within table legs

Table power

IX5000: 6 AC power outlets integrated into the table legs
IX5200: 18 AC power outlets integrated into the table legs
IX5000 deployments in South Africa: 4 table power outlets are available
IX5200 deployments in South Africa: 11 table power outlets are available

Whiteboard microphone input

One 3.5mm TRS mono line in

Temperature Ratings

Expand

Temperature Ratings

Conference-room operating temperature

41 to 95ºF (5 to 35ºC)

Relative humidity

10 to 95% (noncondensing)
