CISCO Refurbished
- Manufacturer
- CISCO
- Condition
- Refurbished
- Lead Time
- 3-4 days
- Availability
- Not In Stock
- List Price/RRP
- US$99.00
Description

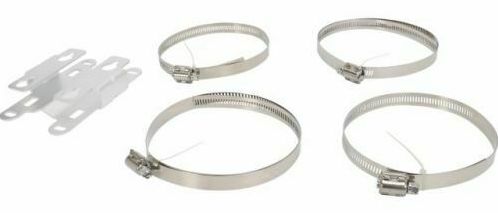

The AIR-ACC1530-PMK1 is a product provided by Cisco, designed to mount their AIR-AP1530 series outdoor access points. This mounting kit comes with one pole mount bracket, one tilt bracket, and all of the necessary hardware for installation. The mounting kit is used to securely attach the access point to a pole or wall, allowing for easy installation in outdoor environments. The pole mount bracket is adjustable, allowing it to fit poles with diameters ranging from 2 inches to 4 inches. The tilt bracket allows for easy adjustment of the access point's angle once it has been attached to the pole or wall. This ensures that the access point is positioned correctly for optimal wireless coverage. The AIR-ACC1530-PMK1 is a durable and reliable product that helps to simplify the installation process of outdoor access points. It is compatible with the AIR-AP1530 series access points and is backed by Cisco's reputation for quality and reliability.
- Part Code
- AIR-ACC1530-PMK1
- Description
- Standard Pole/Wall Mount Kit for AP1530 Series
- Weight
- 3kg
- Manufacturer
- CISCO
- End of Hardware Support
- Yes
- End of Sale
- Yes
- End of Life
- Yes
- Warranty
-
Product specifications
Expand
Product specifications
Nonoperational: 15,000 feet (4,572 meters)
Up to 165 mph (gusts)
Support for PoE+ (802.3at) PD
DC-In, 48 VDC, 0.7 A
Red: Alarm
Green solid: System ready
Product certification and compliance
Expand
Product certification and compliance
Product RF antenna specifications
Expand
Product RF antenna specifications
Operating frequency range: 863 - 928 MHz
Gain: 5 dBi
Environmental: Outdoor, IP67 rated
Operating temperature range: -40 to 158°F (-40 to 70°C)
Mounting: Wall and pole
Impedance: 50 Ohms
VSWR: 1.5
Half power beam width: H:360°, V:30°
Polarization: Vertical
Weight: 790 g (not including the mounting kit)
Height: 692 mm
Diameter: 33 mm (mounted part) and 25 mm (body part)
Lighting protection: DC grounded
Connector: Type N Female
Wind resistance sustained: Up to 100 mph
Wind resistance gusts: Up to 165 mph
Datasheet specs URL: https://www.cisco.com/c/en/us/td/docs/routers/connectedgrid/antennas/installing-combined/industrial-routers-and-industrial-wireless-antenna-guide/ANT-LPWA-DB-O-N-5.pdf
Operating frequency range: 863 - 928 MHz
Gain: 1.5 dBi
Environmental: Outdoor and indoor
Operating temperature range: -40 to 185°F (-40 to 85°C)
Mounting: Direct chassis or bulkhead mount
Impedance: 50 ohms
VSWR: 1.5
Half power beam width: H:360°, V:30°
Polarization: Vertical, liner
Weight: 120 g
Height: 20 mm
Connector: Type N Male
Datasheet specs URL: https://www.cisco.com/c/en/us/td/docs/routers/connectedgrid/antennas/installing-combined/industrial-routers-and-industrial-wireless-antenna-guide/ANT-WPAN-OD-OUT-N.pdf
GPS antenna specifications
Expand
GPS antenna specifications
Environmental: Outdoor
Height: 3.2 in. (8.13 cm)
Width (maximum, at base):1.75 in. (4.45 cm)
Operating frequency range: 1,575.42 MHz
Impedance: 50 ohms, nominal
VSWR: 2.0 maximum in band
Gain: 4 dBi
Minimum gain: 1 dBi @ 10-degrees elevation
Pattern type: Hemispherical
Polarization: Circular RHCP
LNA gain: 25 dB +/–2 dB, DC voltage: 3 to 5 VDC
Out-of-band attenuation: 60 dB minimum at 1575 +/– 50 MHz
Current draw: 20 mA maximum @ 3.3 VDC +/– 0.3 VDC
Operating temperature: -40 to 185ºF (- 40 to 85ºC)
Connector: Right-angle MCX (male)
Wind-speed rating: 165 mph
Compliance: ROHS
Cisco services and support programs
Expand
Cisco services and support programs
Unrestricted access to the extensive Cisco.com resources, communities, and tools
Next-business-day, 8 x 5 x 4, 24 x 7 x 4, and 24 x 7 x 2 advance hardware replacement and onsite parts replacement and installation available
Ongoing operating system software updates within the licensed feature set
Proactive diagnostics and real-time alerts on Cisco Smart Call Home-enabled devices
Business-hours access to Small and Medium-sized Business (SMB) Cisco TAC (access levels vary by region)
Access to Cisco.com SMB knowledge base
Online technical resources through Smart Foundation Portal
OS software bug fixes and patches
