CISCO Refurbished
- Manufacturer
- CISCO
- Condition
- Refurbished
- Lead Time
- 3-4 days
- Availability
- Not In Stock
- List Price/RRP
- US$9,000.00
Description
The ASR-9006-AC-V2 is a high-performance modular router designed for service providers and large enterprises. It can support up to 400 Gbps of forwarding capacity and is equipped with eight line card slots, two route switch processors, and two power supplies. The system also supports a wide range of interfaces including Ethernet, SONET/SDH, ATM, and Packet over SONET/SDH. It is powered by IOS XR software, which provides high availability and network resiliency. The ASR-9006-AC-V2 is easy to configure and manage, with an intuitive graphical user interface and comprehensive command-line interface. It also offers advanced security features such as firewall, intrusion prevention, and VPN capabilities. The ASR-9006-AC-V2 is an ideal solution for businesses and service providers seeking high-performance and reliable network connectivity.
- Part Code
- ASR-9006-AC-V2
- Description
- ASR 9006 AC Chassis with PEM Version 2
- Weight
- 40kg
- Manufacturer
- CISCO
- End of Hardware Support
- Yes
- End of Sale
- Yes
- End of Life
- Yes
- Warranty
-
Hardware Available for Cisco ASR 9000 & ASR 9900 Series
Expand
Hardware Available for Cisco ASR 9000 & ASR 9900 Series
Cisco ASR 9000 & ASR 9900 Series Chassis
Cisco ASR 9010 chassis
ASR-9010-AC-V2
ASR-9010-DC-V2
ASR-9010-SYS
ASR-9010-DC-V2
ASR-9010-SYS
Cisco ASR 9006 chassis
ASR-9006-AC-V2
ASR-9006-DC-V2
ASR-9006-SYS
ASR-9006-DC-V2
ASR-9006-SYS
Cisco ASR 9922 chassis
ASR-9922-AC
ASR-9922-DC
ASR-9922
ASR-9922-DC
ASR-9922
Cisco ASR 9912 chassis
ASR-9912-AC
ASR-9912-DC
ASR-9912
ASR-9912-DC
ASR-9912
Cisco ASR 9910 chassis
ASR-9910
Cisco ASR 9906 chassis
ASR-9906
Cisco ASR 9000 Series Power Infrastructure
AC power supply, 6000W
PWR-6KW-AC-V3
PWR-6KW-AC-V3=
PWR-6KW-AC-V3=
AC power entry module V3
A9K-AC-PEM-V3
A9K-AC-PEM-V3=
A9K-AC-PEM-V3=
AC power supply, 3000W
PWR-3KW-AC-V2
PWR-3KW-AC-V2=
PWR-3KW-AC-V2=

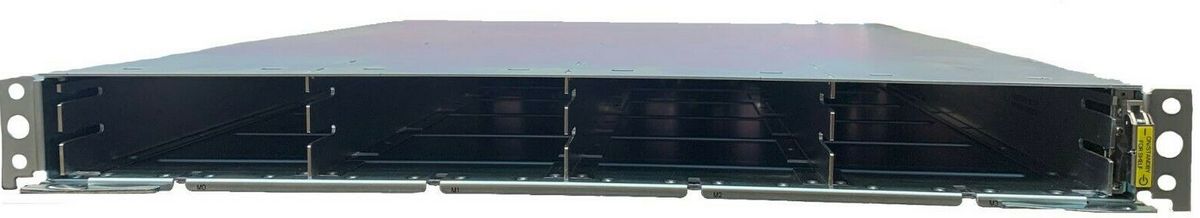

AC power entry module V2
ASR9K-AC-PEM-V2
A9K-AC-PEM-V2=
A9K-AC-PEM-V2=
DC power supply, 4400W
PWR-4.4KW-DC-V3
PWR-4.4KW-DC-V3=
PWR-4.4KW-DC-V3=
DC power entry module V3
A9K-DC-PEM-V3
A9K-DC-PEM-V3=
A9K-DC-PEM-V3=
DC power supply, 2100W
PWR-2KW-DC-V2
PWR-2KW-DC-V2=
PWR-2KW-DC-V2=
Cisco ASR 9000 Series Thermal Infrastructure
Cisco ASR 9010 fan, 2 fan trays per chassis
ASR-9010-FAN
ASR-9010-FAN-V2
ASR-9010-FAN-V2
Cisco ASR 9006 fan, 2 fan trays per chassis
ASR-9006-FAN
ASR-9006-FAN-V2
ASR-9006-FAN-V2
Cisco ASR 9922 fan, 4 fan trays per chassis
ASR-9922-FAN
ASR-9922-FAN-V2
ASR-9922-FAN-V3
ASR-9922-FAN-V2
ASR-9922-FAN-V3
Cisco ASR 9912 fan, 2 fan trays per chassis
ASR-9912-FAN
A9K-9912-FAN
A9K-9912-FAN
Cisco ASR 9910 fan, 2 fan trays per chassis
ASR-9910-FAN
Cisco ASR 9906 fan, 2 fan trays per chassis
ASR-9906-FAN
Cisco ASR 9904 fan, 1 fan tray per chassis
ASR-9904-FAN
A9K-9904-FAN
A9K-9904-FAN
Cisco ASR 9010 fan filter, 1 per chassis
ASR-9010-FILTER
Cisco ASR 9006 fan filter, 1 per chassis
ASR-9006-FILTER
Cisco ASR 9922 fan filter, 1 center and 2 side filters per chassis
ASR-9922-FLTR-CEN
ASR-9922-FLTR-CV2
ASR-9922-FLTR-LR
ASR-9922-FLTR-CV2
ASR-9922-FLTR-LR
Cisco ASR 9912 fan filter, 1 center and 2 side filters per chassis
ASR-9912-FLTR-CEN
ASR-9900-FLTR-LR
ASR-9900-FLTR-LR
Cisco ASR 9910 fan filter, 1 per chassis
ASR-9910-FILTER
Cisco ASR 9906 fan filter, 1 per chassis
ASR-9906-FILTER
Cisco ASR 9904 fan filter, 1 per chassis
ASR-9904-FILTER
Cisco ASR 9006 and ASR 9010
Expand
Cisco ASR 9006 and ASR 9010
Environmental Specifications (All Entries Applicable to Cisco ASR 9006 and ASR 9010)
Operating temperature (nominal)
41 to 104ºF (5 to 40ºC)
Operating temperature (short-term)
ASR 9006: 23 to 131ºF (-5 to 55ºC)
ASR 9010: 23 to 122ºF (-5 to 50ºC)
ASR 9010: 23 to 122ºF (-5 to 50ºC)
Operating humidity (nominal) (relative humidity)
5 to 90%
Storage temperature
-40 to 158ºF (-40 to 70ºC)
Storage (relative humidity)
5 to 93%
Regulatory Compliance (All Entries Applicable to Cisco ASR 9006 and ASR 9010)
Network Equipment Building Standards (NEBS)
Cisco ASR 9006 and ASR 9010 Routers are designed to meet:
SR-3580: NEBS Criteria Levels (Level 3)
GR-1089-CORE: NEBS EMC and Safety
GR-63-CORE: NEBS Physical Protection
VZ.TPR.9205: Verizon TEEER
SR-3580: NEBS Criteria Levels (Level 3)
GR-1089-CORE: NEBS EMC and Safety
GR-63-CORE: NEBS Physical Protection
VZ.TPR.9205: Verizon TEEER
ETSI standards
Cisco ASR 9006 and ASR 9010 Routers are designed to meet:
EN300 386: Telecommunications Network Equipment (EMC)
ETSI 300 019 Storage Class 1.1
ETSI 300 019 Transportation Class 2.3
ETSI 300 019 Stationary Use Class 3.1
EN300 386: Telecommunications Network Equipment (EMC)
ETSI 300 019 Storage Class 1.1
ETSI 300 019 Transportation Class 2.3
ETSI 300 019 Stationary Use Class 3.1
EMC standards emission
Cisco ASR 9006 and ASR 9010 Routers are designed to meet:
FCC Class 47CFR15 A
ICES 003 Class A
AS/NZS CISRP22 Class A
CISPR 22 (EN55022) Class A
VCCI Class A
BSMI Class A
IEC/EN 61000-3-12: Power Line Harmonics
IEC/EN 61000-3-11: Voltage Fluctuations and Flicker
EN55022: Information Technology Equipment (Emissions)
EN 50121-4: Railway EMC
FCC Class 47CFR15 A
ICES 003 Class A
AS/NZS CISRP22 Class A
CISPR 22 (EN55022) Class A
VCCI Class A
BSMI Class A
IEC/EN 61000-3-12: Power Line Harmonics
IEC/EN 61000-3-11: Voltage Fluctuations and Flicker
EN55022: Information Technology Equipment (Emissions)
EN 50121-4: Railway EMC
EMC standards immunity
Cisco ASR 9006 and ASR 9010 Routers are designed to meet:
IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
IEC/EN-61000-4-3: Radiated Immunity (10V/m)
IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
IEC/EN-61000-4-5: Signal Surge Ports (1kV)
IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
EN55024: Information Technology Equipment (Immunity)
EN50082-1/EN-61000-6-1: Generic Immunity Standard
EN 50121-4: Railway EMC
IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
IEC/EN-61000-4-3: Radiated Immunity (10V/m)
IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
IEC/EN-61000-4-5: Signal Surge Ports (1kV)
IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
EN55024: Information Technology Equipment (Immunity)
EN50082-1/EN-61000-6-1: Generic Immunity Standard
EN 50121-4: Railway EMC
Safety
Cisco ASR 9006 and ASR 9010 Routers are designed to meet:
UL/CSA/IEC/EN 60950-1
IEC/EN 60825 Laser Safety
ACA TS001
AS/NZS 60950
FDA Code of Federal Regulations Laser Safety
UL/CSA/IEC/EN 60950-1
IEC/EN 60825 Laser Safety
ACA TS001
AS/NZS 60950
FDA Code of Federal Regulations Laser Safety
Cisco ASR 9904
Expand
Cisco ASR 9904
Categories
Physical specifications
Height: 10.38 in. (263.65x mm) (6 RU)
Width: 17.57 in. (446.28 mm)
Depth: 25.02 in. (635.51 mm)
Weight:
62 lb (28.2 kg) (V2 PEM AND chassis)
114.05 lb (51.84 kg) (2 RSP, Fan Tray, PEM)
Width: 17.57 in. (446.28 mm)
Depth: 25.02 in. (635.51 mm)
Weight:
62 lb (28.2 kg) (V2 PEM AND chassis)
114.05 lb (51.84 kg) (2 RSP, Fan Tray, PEM)
Slot orientation
Horizontal
Cisco ASR 9000 Series RSP
Dual redundant RSPs with integrated fabric in 2 slots
Fabric
-
Cisco ASR 9000 Series line cards
2 line-card slots
Commons” components
2 RSPs
1 fan tray
1 PEM (either DC or AC)
1 fan filter
1 fan tray
1 PEM (either DC or AC)
1 fan filter
Reliability and availability
Fabric redundancy
Feed redundancy
Power-supply redundancy
Route processor redundancy
Software redundancy
Feed redundancy
Power-supply redundancy
Route processor redundancy
Software redundancy
Rack mounting
19-in.
21- and 23-in. adapters available
Note: Minimum 17.75-in. opening between posts is needed for proper operation.
21- and 23-in. adapters available
Note: Minimum 17.75-in. opening between posts is needed for proper operation.
Cabinet mounting
Yes
Wall mounting
No
Performance
Fabric
One per RSP:
Active/active nonblocking operation mode in dual-RSP redundant configuration
Fully redundant in dual-RSP redundant configuration
Built-in service-intelligence and traffic-prioritization capability
Active/active nonblocking operation mode in dual-RSP redundant configuration
Fully redundant in dual-RSP redundant configuration
Built-in service-intelligence and traffic-prioritization capability
Power
Modularity
Pay-as-you-grow power for future scalability, available in AC and DC.
Multiple power module types:
3 kW AC power module
2.1 kW DC power module
Note: Mixing of AC and DC modules is not supported
Multiple power module types:
3 kW AC power module
2.1 kW DC power module
Note: Mixing of AC and DC modules is not supported
Redundancy
AC: N+N redundancy
DC: N+1 redundancy
Power module redundancy
A/B Feed redundancy
DC: N+1 redundancy
Power module redundancy
A/B Feed redundancy
Power zones
No power zone restrictions
Fully load-sharing power infrastructure
Fully load-sharing power infrastructure
Power input
Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum)
Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum)
Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum)
Environmental Specifications
Operating temperature (nominal)
41 to 104ºF (5 to 40ºC)
Operating temperature (short‑term)
23 to 131ºF (-5 to 55ºC) for ASR 9904
23 to 122ºF (-5 to 50ºC) for ASR 9910
23 to 122ºF (-5 to 50ºC) for ASR 9910
Operating humidity (nominal) (relative humidity)
5 to 90%
Storage temperature
-40 to 158ºF (-40 to 70ºC)
Storage (relative humidity)
5 to 93%
Regulatory Compliance
Network Equipment Building Standards (NEBS)
The Cisco ASR 9904 Router is designed to meet (qualification in progress):
SR-3580: NEBS Criteria Levels (Level 3)
GR-1089-CORE: NEBS EMC and Safety
GR-63-CORE: NEBS Physical Protection
VZ.TPR.9205: Verizon TEEER
SR-3580: NEBS Criteria Levels (Level 3)
GR-1089-CORE: NEBS EMC and Safety
GR-63-CORE: NEBS Physical Protection
VZ.TPR.9205: Verizon TEEER
ETSI standards
The Cisco ASR 9904 Router is designed to meet (qualification in progress):
EN300 386: Telecommunications Network Equipment (EMC)
ETSI 300 019 Storage Class 1.1
ETSI 300 019 Transportation Class 2.3
ETSI 300 019 Stationary Use Class 3.1
EN300 386: Telecommunications Network Equipment (EMC)
ETSI 300 019 Storage Class 1.1
ETSI 300 019 Transportation Class 2.3
ETSI 300 019 Stationary Use Class 3.1
EMC standards emission
The Cisco ASR 9904 Router is designed to meet:
FCC Class 47CFR15 A
ICES 003 Class A
AS/NZS CISRP22 Class A
CISPR 22 (EN55022) Class A
VCCI Class A
BSMI Class A
IEC/EN 61000-3-12: Power Line Harmonics
IEC/EN 61000-3-11: Voltage Fluctuations and Flicker
EN55022: Information Technology Equipment (Emissions)
EN 50121-4: Railway EMC
FCC Class 47CFR15 A
ICES 003 Class A
AS/NZS CISRP22 Class A
CISPR 22 (EN55022) Class A
VCCI Class A
BSMI Class A
IEC/EN 61000-3-12: Power Line Harmonics
IEC/EN 61000-3-11: Voltage Fluctuations and Flicker
EN55022: Information Technology Equipment (Emissions)
EN 50121-4: Railway EMC
EMC standards immunity
The Cisco ASR 9904 Router is designed to meet:
IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
IEC/EN-61000-4-3: Radiated Immunity (10V/m)
IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
IEC/EN-61000-4-5: Signal Surge Ports (1kV)
IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
EN55024: Information Technology Equipment (Immunity)
EN50082-1/EN-61000-6-1: Generic Immunity Standard
EN 50121-4: Railway EMC
IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
IEC/EN-61000-4-3: Radiated Immunity (10V/m)
IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
IEC/EN-61000-4-5: Signal Surge Ports (1kV)
IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
EN55024: Information Technology Equipment (Immunity)
EN50082-1/EN-61000-6-1: Generic Immunity Standard
EN 50121-4: Railway EMC
Safety
The Cisco ASR 9904 Router is designed to meet:
UL/CSA/IEC/EN 60950-1
IEC/EN 60825 Laser Safety
ACA TS001
AS/NZS 60950
FDA Code of Federal Regulations Laser Safety
UL/CSA/IEC/EN 60950-1
IEC/EN 60825 Laser Safety
ACA TS001
AS/NZS 60950
FDA Code of Federal Regulations Laser Safety
Cisco ASR 9906 and ASR 9910
Expand
Cisco ASR 9906 and ASR 9910
Environmental Specifications (All Entries Applicable to Cisco ASR 9906 and ASR 9910)
Operating temperature (nominal)
41 to 104ºF (5 to 40ºC)
Operating temperature (short‑term)
23 to 131ºF (-5 to 55ºC) for ASR 9906
23 to 122ºF (-5 to 50ºC) for ASR 9910
23 to 122ºF (-5 to 50ºC) for ASR 9910
Operating humidity (nominal) (relative humidity)
5 to 90%
Storage temperature
-40 to 158ºF (-40 to 70ºC)
Storage (relative humidity)
5 to 93%
Regulatory Compliance (All Entries Applicable to Cisco ASR 9906 and ASR 9910)
Network Equipment Building Standards (NEBS)
Cisco ASR 9906 and ASR 9910 Routers are designed to meet (qualification in progress):
SR-3580: NEBS Criteria Levels (Level 3)
GR-1089-CORE: NEBS EMC and Safety
GR-63-CORE: NEBS Physical Protection
VZ.TPR.9205: Verizon TEEER
SR-3580: NEBS Criteria Levels (Level 3)
GR-1089-CORE: NEBS EMC and Safety
GR-63-CORE: NEBS Physical Protection
VZ.TPR.9205: Verizon TEEER
ETSI standards
Cisco ASR 9906 and ASR 9910 Routers are designed to meet (qualification in progress):
EN300 386: Telecommunications Network Equipment (EMC)
ETSI 300 019 Storage Class 1.1
ETSI 300 019 Transportation Class 2.3
ETSI 300 019 Stationary Use Class 3.1
EN300 386: Telecommunications Network Equipment (EMC)
ETSI 300 019 Storage Class 1.1
ETSI 300 019 Transportation Class 2.3
ETSI 300 019 Stationary Use Class 3.1
EMC standards emission
Cisco ASR 9906 and ASR 9910 Routers are designed to meet:
FCC Class 47CFR15 A
ICES 003 Class A
AS/NZS CISRP22 Class A
CISPR 22 (EN55022) Class A
VCCI Class A
BSMI Class A
IEC/EN 61000-3-12: Power Line Harmonics
IEC/EN 61000-3-11: Voltage Fluctuations and Flicker
EN55022: Information Technology Equipment (Emissions)
EN 50121-4: Railway EMC
FCC Class 47CFR15 A
ICES 003 Class A
AS/NZS CISRP22 Class A
CISPR 22 (EN55022) Class A
VCCI Class A
BSMI Class A
IEC/EN 61000-3-12: Power Line Harmonics
IEC/EN 61000-3-11: Voltage Fluctuations and Flicker
EN55022: Information Technology Equipment (Emissions)
EN 50121-4: Railway EMC
EMC standards immunity
Cisco ASR 9906 and ASR 9910 Routers are designed to meet:
IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
IEC/EN-61000-4-3: Radiated Immunity (10V/m)
IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
IEC/EN-61000-4-5: Signal Surge Ports (1kV)
IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
EN55024: Information Technology Equipment (Immunity)
EN50082-1/EN-61000-6-1: Generic Immunity Standard
EN 50121-4: Railway EMC
IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
IEC/EN-61000-4-3: Radiated Immunity (10V/m)
IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
IEC/EN-61000-4-5: Signal Surge Ports (1kV)
IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
EN55024: Information Technology Equipment (Immunity)
EN50082-1/EN-61000-6-1: Generic Immunity Standard
EN 50121-4: Railway EMC
Safety
Cisco ASR 9904 and ASR 9910 Routers are designed to meet:
UL/CSA/IEC/EN 60950-1
IEC/EN 60825 Laser Safety
ACA TS001
AS/NZS 60950
FDA Code of Federal Regulations Laser Safety
UL/CSA/IEC/EN 60950-1
IEC/EN 60825 Laser Safety
ACA TS001
AS/NZS 60950
FDA Code of Federal Regulations Laser Safety
Cisco ASR 9912 and ASR 9922
Expand
Cisco ASR 9912 and ASR 9922
Environmental Specifications (All Entries Applicable to Cisco ASR 9912 and ASR 9922)
Operating temperature (nominal)
41 to 104ºF (5 to 40ºC)
Operating temperature (short-term)
23 to 131ºF (-5 to 55ºC)
Operating humidity (nominal) (relative humidity)
5 to 90%
Storage temperature
-40 to 158ºF (-40 to 70ºC)
Storage (relative humidity)
5 to 93%
Regulatory Compliance (All Entries Applicable to Cisco ASR 9912 and ASR 9922)
Network Equipment Building Standards (NEBS)
Cisco ASR 9912 and ASR 9922 Routers are designed to meet:
SR-3580: NEBS Criteria Levels (Level 3)
GR-1089-CORE: NEBS EMC and Safety
GR-63-CORE: NEBS Physical Protection
VZ.TPR.9205: Verizon TEEER
SR-3580: NEBS Criteria Levels (Level 3)
GR-1089-CORE: NEBS EMC and Safety
GR-63-CORE: NEBS Physical Protection
VZ.TPR.9205: Verizon TEEER
ETSI standards
Cisco ASR 9912 and ASR 9922 Routers are designed to meet:
EN300 386: Telecommunications Network Equipment (EMC)
ETSI 300 019 Storage Class 1.1
ETSI 300 019 Transportation Class 2.3
ETSI 300 019 Stationary Use Class 3.1
EN300 386: Telecommunications Network Equipment (EMC)
ETSI 300 019 Storage Class 1.1
ETSI 300 019 Transportation Class 2.3
ETSI 300 019 Stationary Use Class 3.1
EMC standards emission
Cisco ASR 9912 and ASR 9922 Routers are designed to meet:
FCC Class 47CFR15 A
ICES 003 Class A
AS/NZS CISRP22 Class A
CISPR 22 (EN55022) Class A
VCCI Class A
BSMI Class A
IEC/EN 61000-3-12: Power Line Harmonics
IEC/EN 61000-3-11: Voltage Fluctuations and Flicker
EN55022: Information Technology Equipment (Emissions)
EN 50121-4: Railway EMC
FCC Class 47CFR15 A
ICES 003 Class A
AS/NZS CISRP22 Class A
CISPR 22 (EN55022) Class A
VCCI Class A
BSMI Class A
IEC/EN 61000-3-12: Power Line Harmonics
IEC/EN 61000-3-11: Voltage Fluctuations and Flicker
EN55022: Information Technology Equipment (Emissions)
EN 50121-4: Railway EMC
EMC standards immunity
Cisco ASR 9912 and ASR 9922 Routers are designed to meet:
IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
IEC/EN-61000-4-3: Radiated Immunity (10V/m)
IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
IEC/EN-61000-4-5: Signal Surge Ports (1kV)
IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
EN55024: Information Technology Equipment (Immunity)
EN50082-1/EN-61000-6-1: Generic Immunity Standard
EN 50121-4: Railway EMC
IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
IEC/EN-61000-4-3: Radiated Immunity (10V/m)
IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
IEC/EN-61000-4-5: Signal Surge Ports (1kV)
IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
EN55024: Information Technology Equipment (Immunity)
EN50082-1/EN-61000-6-1: Generic Immunity Standard
EN 50121-4: Railway EMC
Safety
Cisco ASR 9912 and ASR 9922 Routers are designed to meet:
UL/CSA/IEC/EN 60950-1
IEC/EN 60825 Laser Safety
ACA TS001
AS/NZS 60950
FDA Code of Federal Regulations Laser Safety
UL/CSA/IEC/EN 60950-1
IEC/EN 60825 Laser Safety
ACA TS001
AS/NZS 60950
FDA Code of Federal Regulations Laser Safety
Refurbished CISCO ASR-9006-AC-V2 datasheet
Download PDF
Product datasheet
Download PDF - 759.787 KB
Why Buy Refurbished?
Product Details
We provide refurbished Cisco kit, finished to exceptional standards: rigorously tested, immaculately packed and backed by the best customer service you'll find anywhere.
Committed to Cisco
Go Communications specialises in Refurbished Cisco Systems equipment. We can source virtually any Cisco part. Through our SAMEasNEW refurbished programme, we can even provide high quality, pre-owned parts that Cisco no longer makes - reducing your need to upgrade end-of-life equipment.
Committed to quality
Go Communications is committed to the highest levels of reliability and quality. Our state-of-the-art Cisco Certified Internetwork Expert (CCIE) development facility 'soak tests' every device and component we sell: only if it meets our exceptionally high standards can it be accepted onto our market-leading two-year warranty programme.
Committed to service
We believe in honouring our commitments, providing outstanding quality and delivering fantastic customer service at prices which are very hard to beat. As a result we have built a reputation as a trusted, reliable and knowledgeable source of high quality refurbished Cisco components.
Experience
Everyone at Go Communications has been involved with Cisco Systems products for more than fifteen years. That's not just those in our sales and engineering teams, but also our purchasing, logistics and even finance departments.
Fast Delivery
We believe we are one of the UK's fastest and most efficient Cisco delivery services. For instance, 'in stock' items can be delivered within the M25 corridor within two hours, or to Scotland and Wales within eight hours.
Two Year Warranty
We offer an industry-leading two year warranty* on all of our refurbished products. This includes overnight advanced replacement and ongoing technical support from our CCIE and CCNA certified technicians. We aim to replace all equipment under warranty within 24 hours. If the item isn't in stock, please allow up to 72 hours. If a replacement isn't available in time, we may offer a temporary solution free of charge. * Retail end-user clients only.
Terms and conditions of sale and purchase
Please follow the links for more details on our Terms of Purchase and Terms of Sale. For more information about our products, please call 01279 408 777 or email us at: sales@gocomsys.com.
Why Go Communications?
Related Products
CISCO
ASR-9006-FILTER
ASR-9006 Air Filter
ASR-9006-FILTER
- List Price/RRP:
- US$500.00
- Price:
- US$310.00
- Availability:
- Not In Stock
- Lead Time:
- 3-4 weeks
CISCO
ASR-9006-SYS
ASR-9006 Chassis
ASR-9006-SYS
- List Price/RRP:
- US$7,800.00
- Availability:
- Not In Stock
- Lead Time:
- 3-4 days
CISCO
A9K-AC-PEM-V2
ASR9K AC Power Entry Module Version 2 Spare
A9K-AC-PEM-V2
- Availability:
- Not In Stock
- Lead Time:
- 2-3 days
