/ Products / CISCO / CVR-X2-SFP
CVR-X2-SFP
CVR-X2-SFP
CVR-X2-SFP
CVR-X2-SFP
CVR-X2-SFP
CVR-X2-SFP
CVR-X2-SFP
CVR-X2-SFP

CVR-X2-SFP

CISCO Refurbished

Manufacturer
CISCO
Condition
Refurbished
Availability
In Stock
List Price/RRP
US$195.00
Price
US$6.00 Enquire

Description

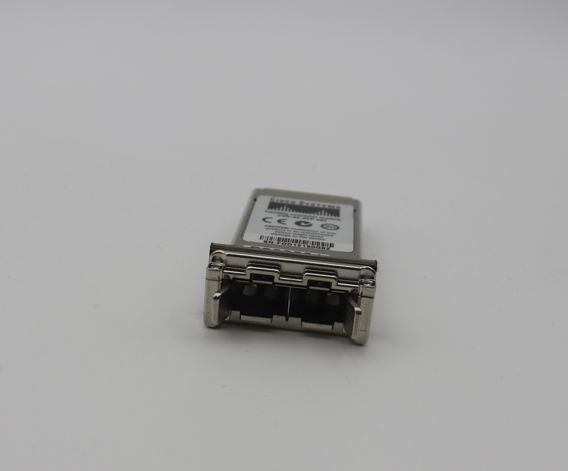

CVR-X2-SFP is a hot-swappable converter module offered by Cisco, a leading provider of network hardware and software solutions. This module is designed to be inserted into an X2 slot on a Cisco switch, converting it into a Single Small Form-Factor Pluggable (SFP) slot. This allows users to easily connect fiber optics or copper cables of different types and speeds, as needed for their networking needs.The CVR-X2-SFP module supports a wide range of Cisco switch models and offers high-speed connectivity, ensuring the smooth and reliable operation of networks. It is a cost-effective solution that eliminates the need to purchase new switches or hardware when changes in connectivity are required.The module is also designed for ease of use, as it can be inserted or removed without resetting the switch, allowing for quick and easy maintenance and upgrades.Overall, the CVR-X2-SFP converter module is a practical and valuable addition to Cisco networks, providing flexibility and convenience while supporting high-speed connectivity.

Please note:

Original Cisco Converter

Make an enquiry

about CVR-X2-SFP

We are Refurbished Network Equipment specialists and we may have CVR-X2-SFP available to us if it’s not in stock. Please complete the form and we'll get back to you as soon as we can. We have a vast amount of experience and knowledge with all legacy CISCO components and will be happy to provide you with expert after-sales advice, should you need it.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part Code
CVR-X2-SFP
Description
Cisco TwinGig Converter Module
Weight
3kg
Comments
Original Cisco Converter
Manufacturer
CISCO
End of Hardware Support
Yes
End of Sale
Yes
End of Life
Yes
Warranty
2 year warranty icon

Cisco Catalyst 4500 Supervisor Engine 6-E Performance and Scalability Features

Expand

Cisco Catalyst 4500 Supervisor Engine 6-E Performance and Scalability Features

Feature and Description
Supervisor Engine 6-E
Centralized switching capacity
320 Gbps
Per-slot switching capacity
24 Gbps
Throughput
250 Mpps for IPv4
125 Mpps for IPv6
250 Mpps for L2 Bridging
IPv4 Routing entries
256,000
IPv6 Routing entries
128,000
Multicast routes
32,000
CPU
1.3 GHz
CPU queues
64
Synchronous Dynamic RAM (SDRAM)
512 MB upgradable to 1 GB
Nonvolatile RAM (NVRAM)
No through Boot flash (64 MB)
Security and QoS hardware entries
128,000
Cisco Network Admission Control (NAC) and Dynamic Host Configuration Protocol (DHCP) Snooping entries
12,000
MAC addresses
55,000
Active VLANs
4096
Spanning Tree Protocol instances
10,000
Switched virtual interfaces (SVIs)
4096
Switched Port Analyzer (SPAN)
Maximum of 8 sessions: ingress and or egress

Supervisor Engine 6-E High Availability and Uplink Options

Expand

Supervisor Engine 6-E High Availability and Uplink Options

Feature and Description
Supervisor Engine 6-E
Redundant-capable
Yes
Cisco Catalyst 4507R, 4507R-E, and 4507R+E models
Cisco Catalyst 4510R, 4510R-E, and 4510R+E models
Active supervisor engine uplinks in redundant mode
Two 10 Gigabit Ethernet (wire-speed)
or
Four 10 Gigabit Ethernet (2:1 oversubscribed)
or
Four Gigabit Ethernet (Cisco Twin Gig Converter Module)
or
Eight Gigabit Ethernet (Cisco Twin Gig Converter Module)*
Active supervisor engine uplinks (nonredundant mode)
Two 10 Gigabit Ethernet
or
Four Gigabit Ethernet (Cisco Twin Gig Converter Module)
Uplink optic types
SFP (Gigabit Ethernet) with Cisco Twin Gig Converter Module or X2 optics (10 Gigabit Ethernet ports)
SSO/NSF and ISSU
Yes

Summary of Supervisor Engine 6-E IPv6 Capabilities

Expand

Summary of Supervisor Engine 6-E IPv6 Capabilities

Feature and Description
Supervisor Engine 6-E
IPv6 support
Unicast and Multicast forwarding done in hardware
IPv6 performance
125 Mpps
IPv6 Routing entries
128,000
Dynamic Hardware Route Table allocations
Yes
MLD Snooping for IPv6
Yes, in hardware
URPFv6: Strict mode
Yes, in hardware

Summary of Supervisor Engine 6-E Enhanced QoS Features

Expand

Summary of Supervisor Engine 6-E Enhanced QoS Features

Feature and Description
Supervisor Engine 6-E
QoS hardware entries
64,000
Policers
16,000 with flexible assignment for input/output
Hierarchical policies
Yes: 2-Rate, 3-Color
Number of Tx queues
Flex queues up to 8
Maximum Tx queue size
Dynamic 16 to 8184 packets per queue, depending on the number and type of line card and the number of queues configured on the port (refer to documentation for more details)
Dynamic queue sizes
Yes
Configurable classification mapping tables
Yes
Match IP on MAC Header
Yes
Modular QoS-compliant
Yes
DBL: Congestion-avoidance feature
Yes
QoS sharing
Supported on all ports
Shaping
Yes, per Tx queue
Broadcast suppression
Supported in hardware for all ports
Multicast suppression
Supported in hardware for all ports

Key Supervisor Engine 6-E Management Features

Expand

Key Supervisor Engine 6-E Management Features

Feature and Description
Supervisor Engine 6-E
USB drive support
Yes, future software release
Compact Flash support
Yes, 64- and 128-MB options
FAT file system support
Yes
SPAN
Up to 8 sessions: ingress and egress

Supervisor Engine 6-E Security Features

Expand

Supervisor Engine 6-E Security Features

Feature and Description
Supervisor Engine 6-E
Security hardware entries
64,000
Cisco NAC and DHCP Snooping entries
12,000
URPF
Yes, supported in hardware
802.1X
Yes
802.1X extensions
Yes
IP Source Guard, Dynamic ARP Inspection (DAI), and DHCP Snooping
Yes
Cisco NAC
Yes

Cisco Catalyst 4500 Supervisor Engine 6-E Regulatory Standards Compliance

Expand

Cisco Catalyst 4500 Supervisor Engine 6-E Regulatory Standards Compliance

Specification
Standard
Regulatory compliance
CE marking
Safety
UL 60950CAN/CSA-C22.2 No. 60950
EN 60950
IEC 60950
TS 001
AS/NZS 3260
EMC
FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI Class A
ETS 300 386
EN 55022
EN 55024
EN 61000-6-1
EN 50082-1
EN 61000-3-2
EN 61000-3-3
Industry EMC, safety, and environmental standards
GR-63-Core Network Equipment Building Standards (NEBS) Level 3
GR-1089-Core Level 3
ETS 300 019 Storage Class 1.1
ETS 300 019 Transportation Class 2.3 (pending)
ETS 300 019 Stationary Use Class 3.1
ETS 300 386
