/ Products / CISCO / WS-SVC-ASA-SM1
WS-SVC-ASA-SM1
WS-SVC-ASA-SM1
WS-SVC-ASA-SM1
WS-SVC-ASA-SM1
WS-SVC-ASA-SM1
WS-SVC-ASA-SM1

WS-SVC-ASA-SM1

CISCO Refurbished

Manufacturer
CISCO
Condition
Refurbished
Availability
In Stock
List Price/RRP
US$115,000.00
Price
US$525.00 Enquire

Description

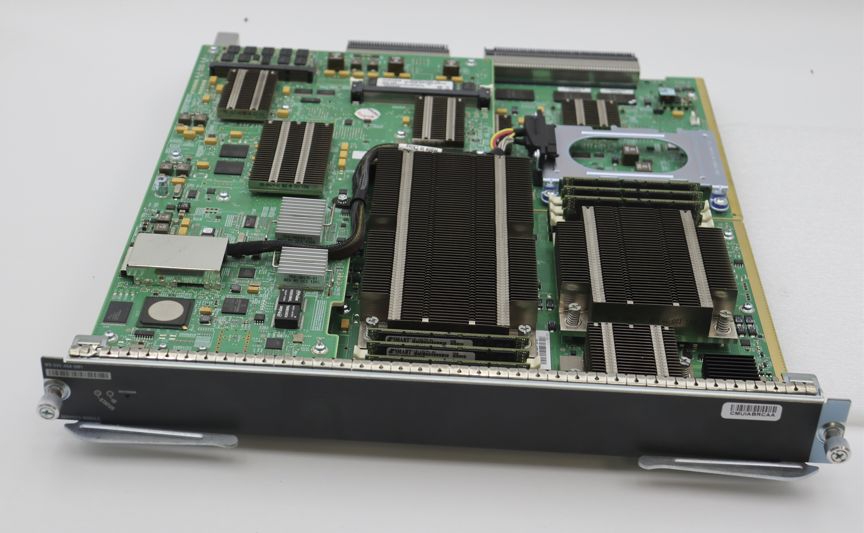

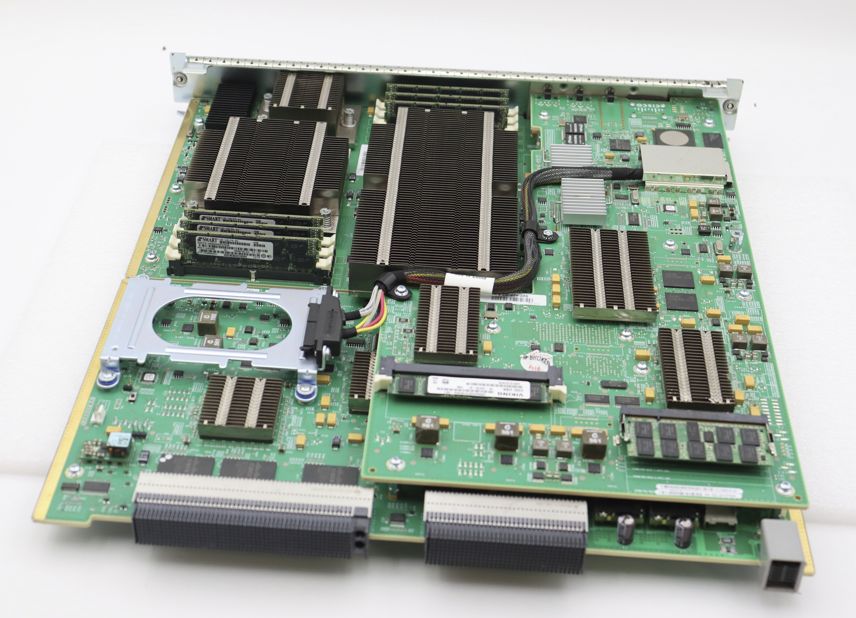

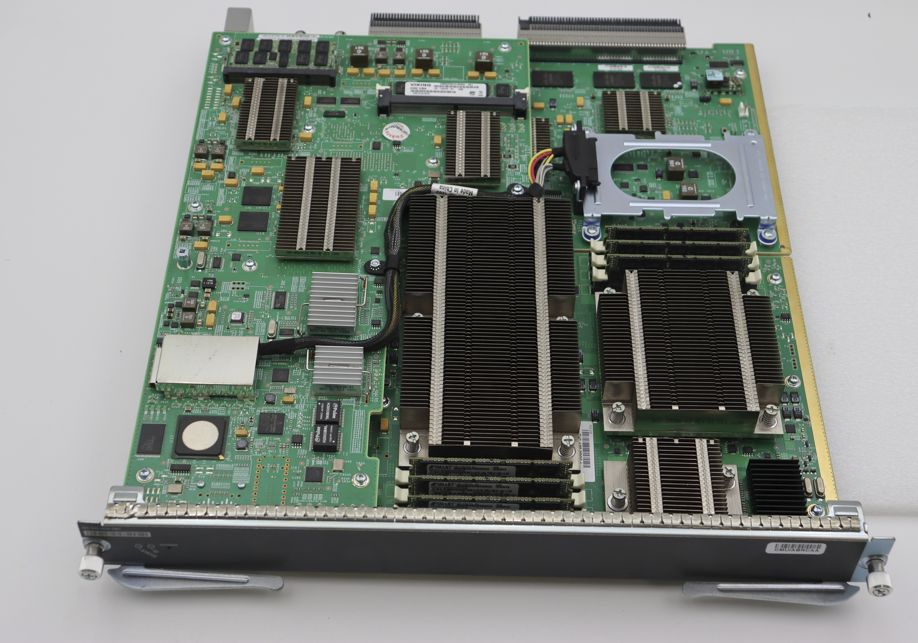

The WS-SVC-ASA-SM1-K9 is a network security module produced by CISCO. It provides advanced security features to protect data, resources and applications from unauthorized access, malicious attacks, and other security threats. The module is designed to work with the Cisco Catalyst 6500 Series switches and adds a firewall, intrusion prevention, VPN, and other security services to the network while minimizing the impact on performance. It supports up to 10 Gbps throughput and helps enhance network uptime with features such as stateful failover and high availability clustering. The module can also be managed through the Cisco Adaptive Security Device Manager (ASDM), a web-based interface that simplifies security configuration and monitoring. The WS-SVC-ASA-SM1-K9 can help organizations meet security compliance requirements and provide a secure infrastructure for their users, applications, and data.

Make an enquiry

about WS-SVC-ASA-SM1

We are Refurbished Network Equipment specialists and we may have WS-SVC-ASA-SM1 available to us if it’s not in stock. Please complete the form and we'll get back to you as soon as we can. We have a vast amount of experience and knowledge with all legacy CISCO components and will be happy to provide you with expert after-sales advice, should you need it.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part Code
WS-SVC-ASA-SM1
Description
ASA Service Module
Manufacturer
CISCO
End of Hardware Support
Yes (31 July 2023)
End of Sale
Yes (16 July 2018)
End of Life
Yes (15 January 2018)
Warranty
2 year warranty icon

Features

Expand

Features

Performance
Maximum firewall throughput
20 Gbps
Multiprotocol firewall throughput
16 Gbps
Concurrent connections
10,000,000
Connections per second
300,000
Maximum 3DES/AES VPN throughput
2 Gbps
Maximum site-to-site and IPsec IKEv1 client VPN user sessions
10,000
Maximum AnyConnect or clientless VPN user sessions
10,000
Capacities
Security contexts
5, 10, 20, 50, 100, 250 licenses (2 included)
Cards per switch
4 ASA Services Modules per Catalyst 6500 or Cisco 7600 Series chassis
VLANs
1000
High availability
Active/Active, Active/Standby
NAT translations
10 million
Transparent mode VLANs
16 pairs
Access control entries
2 million

ASA Services Module Licenses

Expand

ASA Services Module Licenses

Description
Description
License Number
ASA 5500 5 Security Contexts License
ASA5500-SC-5
ASA 5500 5 Security Contexts License (spare)
ASA5500-SC-5=
ASA 5500 10 Security Contexts License
ASA5500-SC-10
ASA 5500 10 Security Contexts License (spare)
ASA5500-SC-10=
ASA 5500 20 Security Contexts License
ASA5500-SC-20
ASA 5500 20 Security Contexts License (spare)
ASA5500-SC-20=
ASA 5500 50 Security Contexts License
ASA5500-SC-50
ASA 5500 50 Security Contexts License
ASA5500-SC-50=
ASA 5500 100 Security Contexts License
ASA5500-SC-100
ASA 5500 100 Security Contexts License
ASA5500-SC-100=
ASA 5500 250 Security Contexts License
ASA5500-SC-250
ASA 5500 250 Security Contexts License
ASA5500-SC-250=
ASA 5500 5 to 10 Security Context License Upgrade
ASA5500-SC-5-10=
ASA 5500 10 to 20 Security Context License Upgrade
ASA5500-SC-10-20=
ASA 5500 20 to 50 Security Context License Upgrade
ASA5500-SC-20-50=
ASA 5500 50 to 100 Security Context License Upgrade
ASA-SC-50-100=
ASA 5500 100 to 250 Security Context License Upgrade
ASA-SC-100-250=
ASA 5500 GTP/GPRS Inspection License
ASA5500-GTP
ASA 5500 GTP/GPRS Inspection License
ASA5500-GTP=

Product Specifications

Expand

Product Specifications

Specification
Regulatory Compliance
CE Markings per directives 2004/108/EC and 2006/108/EC
Safety
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
EN 60950-1
IEC 60950-1
AS/NZS 60950-1
GB4943
EMC (Emissions)
47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR2 2 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
CNS13438 Class A
EMC (Immunity)
EN50082-1
EN61000-6-1
EN55024
CISPR24
EN300386
KN 61000-4 Series
NEBS Criteria Levels
SR-3580 NEBS level 3 GR-63-CORE, issue 3; GR-1089 CORE, issue 4
Verizon NEBS Compliance
Telecommunications Carrier Group (TCG) Checklist
Qwest NEBS Requirements
Telecommunications Carrier Group (TCG) Checklist
ATT NEBS Requirements
ATT TP76200 level 3 TCG Checklist
ETSI
ETS 300 019-2-1, Class 1.2 Storage
ETS 300 019-2-2, Class 2.3 Transportation
ETS 300 019-2-3, Class 3.2 Stationary Use
