CISCO Refurbished
- Manufacturer
- CISCO
- Condition
- Refurbished
- Lead Time
- 2-3 days
- Availability
- Not In Stock
- List Price/RRP
- US$600.00
Description

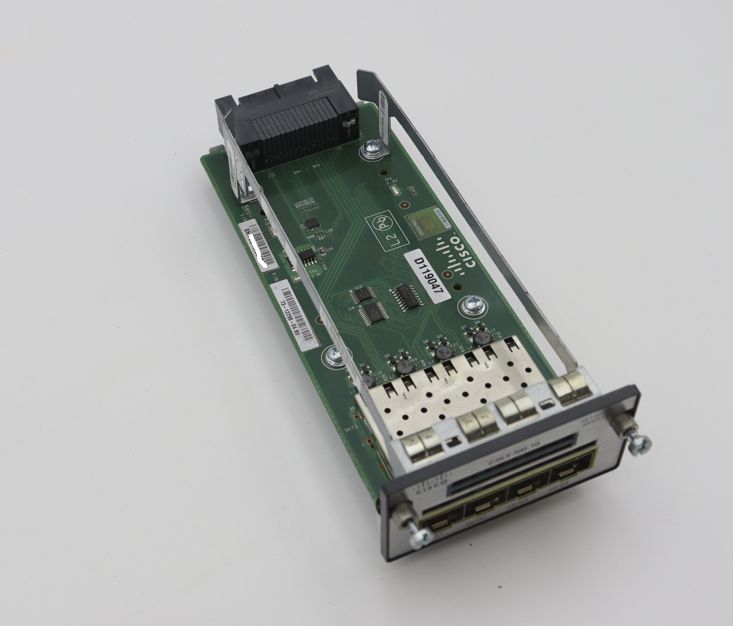

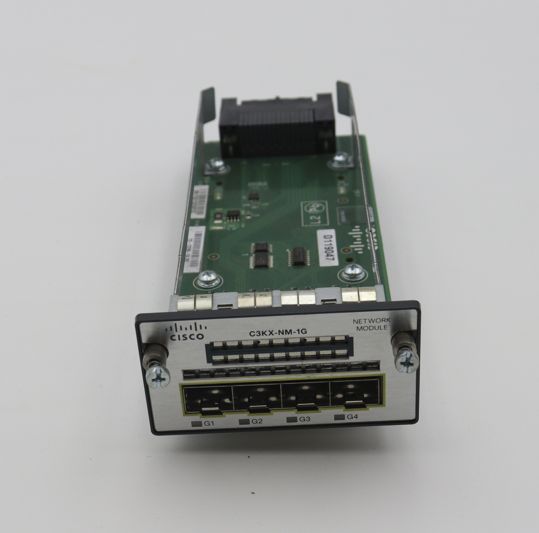

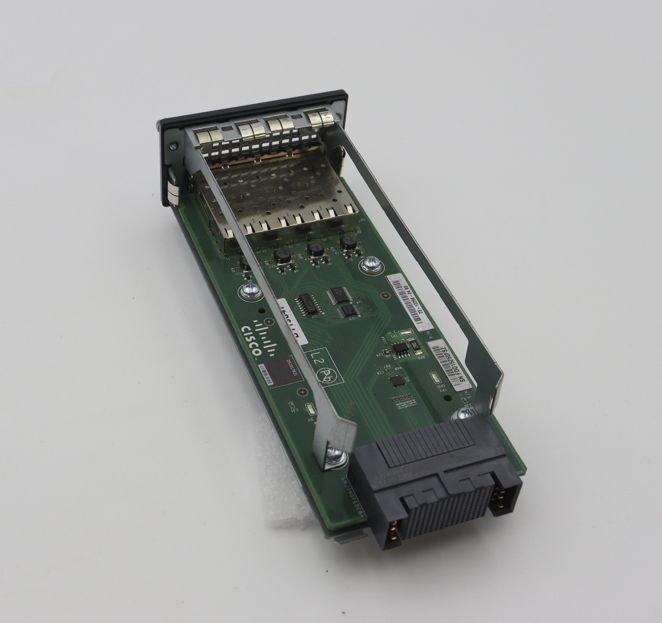

The CISCO C3KX-NM-1G is a network module that expands the connectivity options of compatible Cisco Catalyst switches. It provides one Gigabit Ethernet port for increased network bandwidth and performance. The module is hot-swappable, allowing it to be easily inserted or removed without interrupting network operations. It also features a status LED to indicate the module's power and activity. The C3KX-NM-1G is compatible with Cisco Catalyst 3750-X and 3560-X Series switches, and can be used in a variety of industries including education, healthcare, and finance.Overall, the C3KX-NM-1G offers a simple and efficient way to enhance the capabilities of existing Cisco network switches.
- Part Code
- C3KX-NM-1G
- Description
- Catalyst 3K-X 1G Network Module
- Weight
- 1kg
- Manufacturer
- CISCO
- End of Hardware Support
- Yes (31 October 2021)
- End of Sale
- Yes (30 October 2016)
- End of Life
- Yes (31 October 2015)
- Warranty
-
Network Module Numbers and Descriptions
Expand
Network Module Numbers and Descriptions
10GB-T Cable Types and Supported Lengths
Expand
10GB-T Cable Types and Supported Lengths
Cisco Catalyst 3750-X and 3560-X Performance Specifications
Expand
Cisco Catalyst 3750-X and 3560-X Performance Specifications
Dimensions, Weight, Acoustic, MTBF, and Environmental Range
Expand
Dimensions, Weight, Acoustic, MTBF, and Environmental Range
LpA: 43 dbA Typical, 46 dbA Maximum
LwA: 5.2 Bel Typical, 5.5 Bel Maximum
For GE SFP port models:
LpA: 31 dbA Typical, 34 dbA Maximum
LwA: 4.2 Bel Typical, 4.5 Bel Maximum
Typical: Noise emission for a typical configuration
Maximum: Statistical maximum to account for variation in production
Altitude: 15,000 ft
Connectors and LED Indicators
Expand
Connectors and LED Indicators
1000BASE-T SFP-based ports: RJ-45 connectors, 2-pair Cat-5E UTP cabling
100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, DWDM and CWDM SFP Transceivers: LC fiber connectors (single-mode or multimode fiber)
10GBASE-SR, LR, LRM, CX1 (v02 or higher) SFP+ Transceivers: LC fiber connectors (single-mode or multimode fiber)
Cisco StackWise stacking ports: copper-based Cisco StackWise cabling
Cisco StackPower: Cisco Proprietary Power Stacking cables
Ethernet Management port: RJ-45 connectors, 2-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections
Internal power supply connector: The internal power supply is an autoranging unit. The internal power supply supports input voltages between 100 and 240VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Safety and Compliance Information for Cisco Catalyst 3750-X and 3560-X Series
Expand
Safety and Compliance Information for Cisco Catalyst 3750-X and 3560-X Series
C-UL to CAN/CSA 22.2 No.60950-1
TUV/GS to EN 60950-1
CB to IEC 60950-1 with all country deviations
AS/NZS 60950-1
CE Marking
NOM (through partners and distributors)
GOST (Russia Safety Mark)
EN 55022B Class A (CISPR22 Class A)
VCCI Class A
AS/NZS 3548 Class A or AS/NZS CISPR22 Class A
KCC
CE Marking
GOST (Russian mark - Post FCS through partners)
CCC for PS FRU Redundant
XPS 2200 Performance Specifications
Expand
XPS 2200 Performance Specifications
Physical and Environmental Specifications
Expand
Physical and Environmental Specifications
1.73 x 17.5 x 20.5 in.
(4.4 x 44.5 x 52.1 cm)
Weight:
19.8 lb (9.0 kg)
VCCI Class A for Japan: V-3/2007.04
CCC EMC for China on Spare Power Supplies: EN61000-3-2 (GB17625.1-1998) BSMI Class A for Taiwan: CNS13438
KCC (formerly MIC) GB17625.1-1998 Class A for Korea: KN24/KN22
AS/NZS Class A for Australia: CISPR22:2004 or EN55022
Brazil, ANATEL In-Country approval
CE Class A for European Union: EN55022, EN300386, EN55024 (CISPR24)
CAN/CSA 22.2 No.60950-1
EN 60950-1CB to IEC 60950-1
GB 4943
Cisco XPS 2200 Connectors and Cabling
Expand
Cisco XPS 2200 Connectors and Cabling
Service port: RJ-45-to-DB9 cable for PC connections
Internal power supply connector: The internal power supply is an autoranging unit. The internal power supply supports input voltages between 100 and 240VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
Cisco XPS 2200 Indicators
Expand
Cisco XPS 2200 Indicators
Blinking Green when actively backing up Port
Solid Amber indicates backup not available for this Port
Blinking Amber for any port faults
Blinking Green not defined
Solid Amber indicates that SP port off-line (No Power Output)
Blinking Amber for any port faults
Both RPS and SP ports alternate Green/Amber when selected via push button
18 Port LEDs for new features with more comprehensive single look status assessment
Solid Green - Normal operation with no faults
Blinking Green during boot
Solid Amber - Temperature faults, cable faults, port faults, power supply faults, fan faults
Blinking Amber during software updates
Fan
Use one Fan LED, amber when any one fan fails, green when all OK
Each FRU Fan (3) will have an associated Status LED (green=working, amber=failed), but no silkscreen on front panel
Temp
Green - No Problems. Amber - Over Temperature
FEP (PS1 & PS2)
Solid Green - Stack Power Mode OK
Blinking Green - RPS Mode OK
Solid Amber - Stack Power Mode Faulty
Refurbished CISCO C3KX-NM-1G datasheet
