CISCO Refurbished
- Manufacturer
- CISCO
- Condition
- Refurbished
- Lead Time
- 2-3 days
- Availability
- Not In Stock
- List Price/RRP
- US$26,500.00
Description

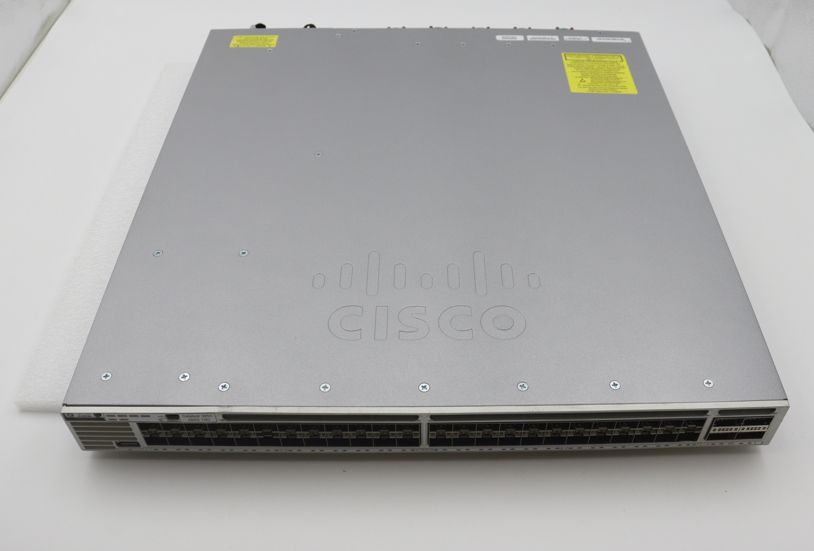

The WS-C3850-48XS-S is a network switch product offered by CISCO. It has 48 Ethernet ports and 4 10G fiber ports for high-speed networking. The switch is designed for use in data centers or large enterprise networks requiring high levels of reliability and performance. It has capabilities such as stacking, which allows for the management of multiple switches as one entity, and advanced security features to protect against cyber threats. The product is compatible with various networking protocols and offers a range of management options, including command-line interface (CLI), web interface, and Simple Network Management Protocol (SNMP). It also offers energy-saving features, enabling organizations to reduce their energy consumption and carbon footprint. The WS-C3850-48XS-S is built with CISCO's high-quality standards and offers comprehensive support and maintenance to ensure maximum uptime and longevity. Overall, the WS-C3850-48XS-S is a robust and versatile switch designed to meet the demands of modern networking environments.
Please note:
Rack Ears Included
- Part Code
- WS-C3850-48XS-S
- Description
- Cisco Catalyst 3850 48 Port 10G Fiber Switch IP Base
- Weight
- 7.5kg
- Comments
- Rack Ears Included
- Manufacturer
- CISCO
- End of Hardware Support
- Yes (30 April 2027)
- End of Sale
- Yes (30 April 2022)
- End of Life
- Yes (30 April 2021)
- Warranty
-
Cisco Catalyst 3850 Series configurations
Expand
Cisco Catalyst 3850 Series configurations
Network module compatibility matrix
Expand
Network module compatibility matrix
Cisco Catalyst 3850 Series performance specifications
Expand
Cisco Catalyst 3850 Series performance specifications
92 Gbps on 24-port Gigabit Ethernet model
68 Gbps on 12-port Gigabit Ethernet model
640 Gbps on 24-port Multigigabit Ethernet model
472 Gbps on 48-port Multigigabit Ethernet model
1280 Gbps on 48-port 10 Gigabit Ethernet SFP+ model
640 Gbps on 24-port 10 Gigabit Ethernet SFP+ model
320 Gbps on 12-port 10 Gigabit Ethernet SFP+ model
24,000 flows on 12-port and 24-port Gigabit Ethernet models
96,000 flows on 48-port 10 Gigabit Ethernet SFP+ model
48,000 flows on 24-port 10 Gigabit Ethernet SFP+ model
24,000 flows on 12-port 10 Gigabit Ethernet SFP+ model
Up to 20 Gbps on 24-port Gigabit Ethernet model
Dimensions, weight, acoustic, MTBF, and environmental range
Expand
Dimensions, weight, acoustic, MTBF, and environmental range
-5ºC to +45ºC, up to 5000 feet (1500m)
-5ºC to +40ºC, up to 10,000 feet (3000m)
Minimum ambient temperature for cold start is 32°F (0°C)
Short-term exceptional conditions:
-5ºC to +50ºC, up to 5000 feet (1500m)
-5ºC to +45ºC, up to 10,000 feet (3000m)
-5ºC to +45ºC, at sea level with single fan failure
Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences.
-5ºC to +45ºC, up to 6000 feet (1800m)
-5ºC to +40ºC, up to 10,000 feet (3000m)
-5ºC to +35ºC, up to 13,000 feet (4000m)
Short-term exceptional conditions:
-5ºC to +55ºC, up to 6000 feet (1800m)
-5ºC to +50ºC, up to 10,000 feet (3000m)
-5ºC to +45ºC, up to 13,000 feet (4000m)
-5ºC to +45ºC, at sea level with single fan failure
Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences.
LpA: 43dB typical, 45dB maximum
LwA: 5.2B typical, 5.5B maximum
Typical: Noise emission for a typical configuration
Maximum: Statistical maximum to account for variation in production
Altitude: 15,000 ft
Connectors
Expand
Connectors
Multigig-T ports: RJ-45 connectors, 4-pair Cat-5E, Cat-6, Cat6A UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat-5E UTP cabling
100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, DWDM and CWDM SFP transceivers: LC fiber connectors (single-mode or multimode fiber)
10GBASE-SR, LR, LRM, ER, ZR, DWDM SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber)
CX1 cable assemblies: SFP+ connector
Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling
Cisco StackPower: Cisco proprietary power stacking cables
Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections
Internal power supply connector: The internal power supply is an autoranging unit. The internal power supply supports input voltages between 100 and 240VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
Power consumptions (in watts) of standalone Cisco Catalyst 3850 Series
Expand
Power consumptions (in watts) of standalone Cisco Catalyst 3850 Series
Safety and compliance information for the Cisco Catalyst 3850 Series
Expand
Safety and compliance information for the Cisco Catalyst 3850 Series
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
NOM (obtained by partners and distributors)
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
KCC
CNS13438 Class A
EN55024
CISPR24
KN24
Refurbished CISCO WS-C3850-48XS-S datasheet
Download PDF
Product datasheet
Download PDF - 1.763 MB
